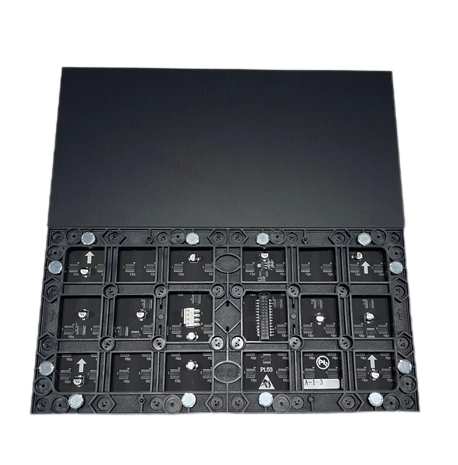

UTC-Series

COB process LED module replaces the traditional fine pitch LED module. MINI flip chip technology, anti-collision, HDR image quality.

utc series
utc series

Main function of UTC-Series

  • MINI-COB Contrast Ratio 10000:1

  • Normal 320*160mm size and module hole location

  • Wash it with water directly,collision prevention

  • High-precision splicing with micron-level tolerances and adjustable seams

  • Choose your own required power supply and receiver card, backup options according to customer needs.


Module COB Technical Specification



UT-C Series Indoor Pre-Maintenance Products

Pixel Pitch

P1.25mm

P1.53mm

P1.86mm

Pixel Intensity

640,000 px/㎡

422,753 px/㎡

288,906 px/㎡

LED Chip

Flip Chips

Module Size(W*H)

320*160mm

Module Resolution

256*128 dots

208*104 dots

172*86 dots

Surface Finishing

COB Lamination

Surface Hardness

4H

Panel Size (W)

640mm*480mm*59mm

Panel Weight

7.5 kg /Panel

Panel Resolution Points

512*384

416*312

344*258

Materials

Die-casting aluminum

Circuit Design

Common Positive Circuitry

Flash Calibration Storage

Applicability

Brightness

 600CD

Refresh Rate

3840Hz

Contrast Ratio

10000:1(No lighting conditions)

Color Temp.

9300K(standard)

View Angle

H160°, V160°

Input Voltage

AC 100~240V 50/60Hz

Highest power consumption

(white balance 600 nits)

135 w/panel

88 w/panel

88 w/panel

Repair Methods

Full pre-maintenance

Waterproof rating on the front side of the panel

IP54(Washable with water)

Lifetime of 50% brightness

100000 hours

Working Temperature/Humidity

-10°C-+40°C/10%RH-90%RH

Substrate Temperature/Humidity

-20°C-+60°C/10%RH-90%RH

Certificates

CCC、EMCa级、ROHS、CQC

Application

Indoor

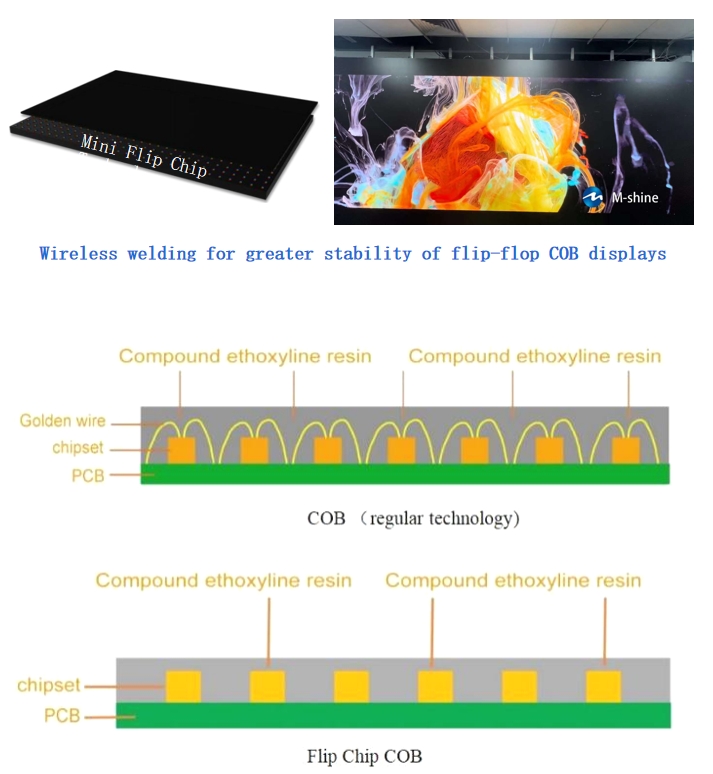

Ultra High Contrast

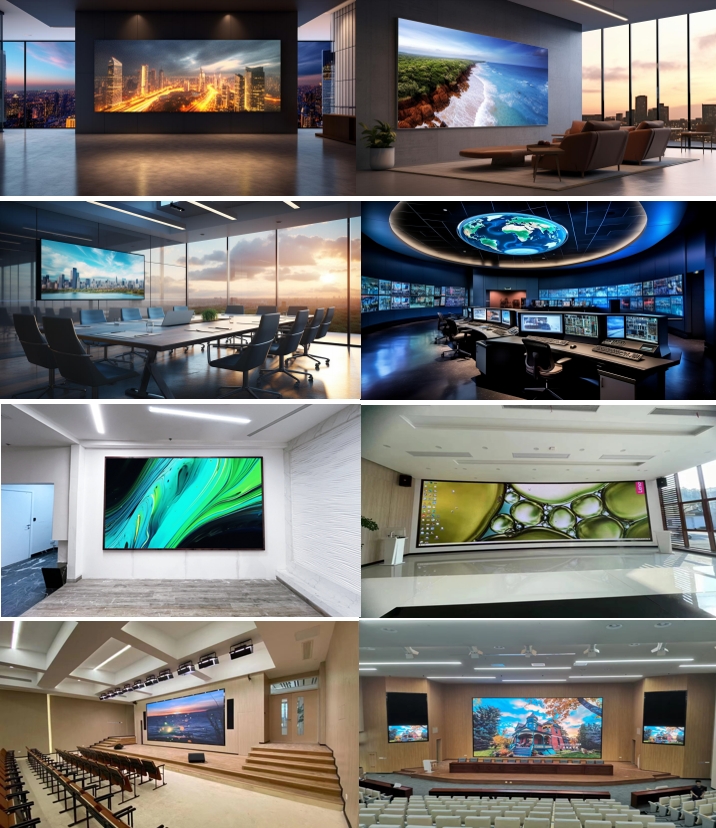

UTC Series Application Cases
